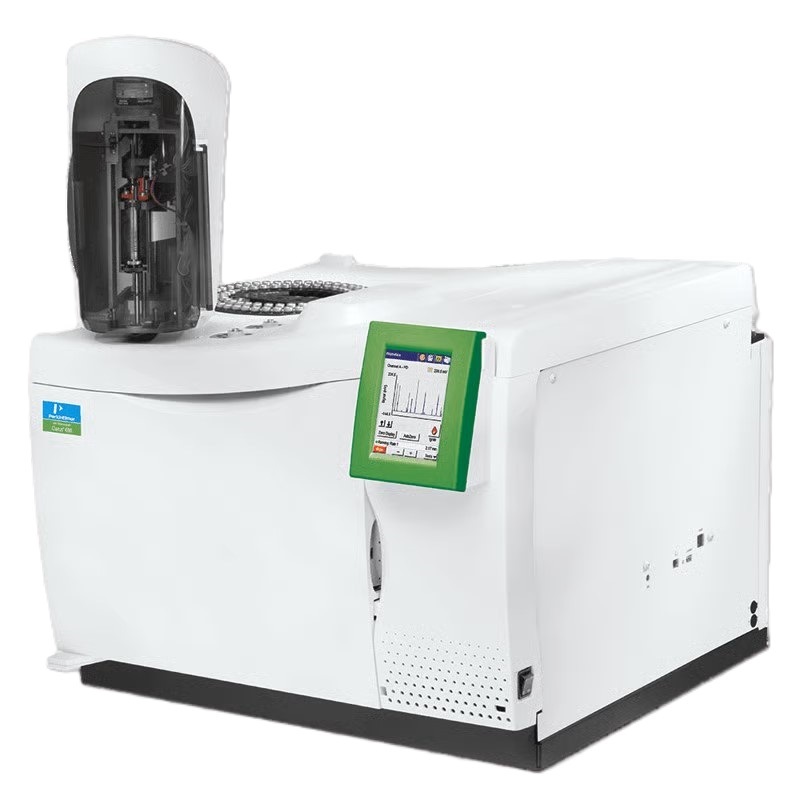

When the highest levels of throughput are critical to your operations, choose the Clarus 690 gas chromatograph. Its patented high-performance oven delivers the fastest heat-up and cool-down of any oven in the business, and that means shorter injection-to-injection times, and the ability to run more samples per day. Plus, the oven's twin-wall design with concentric air exhaust provides exceptional cooling to near-ambient temperatures without resorting to liquid cryogen – critical for analysis of VOCs. The Clarus 690 GC features a wide-range flame ionization detector (FID), a new high-performance capillary injector with decreased reactivity, and autosampler technology that delivers multiple options for liquid injection, headspace, and SPME on one system.

Ultra-Fast Oven:

• Heating rate up to 140 °C/min

• Cooling from 450 °C to 50 °C in under 2 minutes

• Temperature range: Ambient +5 °C to ~450 °C

• Supports ballistic or soft cooling for high sample turnover

Capillary Inlet System (PSS):

• Split/Splitless injector design with enhanced inertness

• Replaceable liners and universal configurations

• Designed to minimize sample degradation and carryover

Detectors (up to 2 simultaneously):

• 7 orders of linear dynamic range

• High sensitivity with no need for makeup gas

• Standard: Flame Ionization Detector (FID)

• Optional: ECD, TCD, NPD, FPD, PID

Autosampler Compatibility:

• Works with TurboMatrix MultiPrep or liquid autosamplers

• Supports liquid, headspace, and SPME injection modes

• Injection volume: 0.1–50 µL (autosampler) / up to 150 µL (manual)

PPC (Programmed Pneumatic Control):

• Full electronic pressure and flow control

• Regulates carrier gas, split vent, column flow, and detector makeup lines

• Enables precise method reproducibility and stability

Touchscreen Interface:

• Multi-language support

• Real-time temperature, flow, and signal display

• Built-in maintenance alerts and diagnostics
